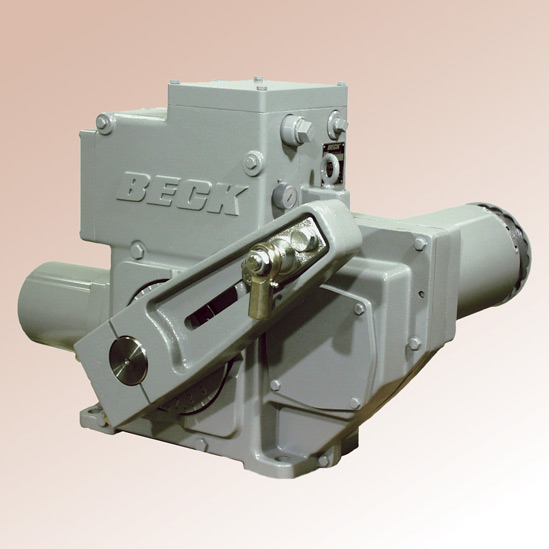

Group 11 Rotary Damper Drives and Actuators - Model 11-400

Model 11-400

Available Torque and Timing combinations for the model 11-400:

Torque nm (lb-ft) Stroke Time* (seconds/100°) Motor Current (A) @110VAC
474 (350) 29 1.56
746 (550) 48 1.56
881 (650) 29 2.64
1084 (800) 72 1.56
1356 (1000) 29 3.6
1356 (1000) 48 2.64
1356 (1000) 90 1.56
2034 (1500) 120 1.56
2034 (1500) 43 3.6
2034 (1500) 72 2.64

*Stroke times listed are for 50 Hz operation.

11-400 Dimensions Sheet

We are available to help with this product selection, including on-site application reviews, or hands-on demonstrations. If you have any questions about this product please contact us.
