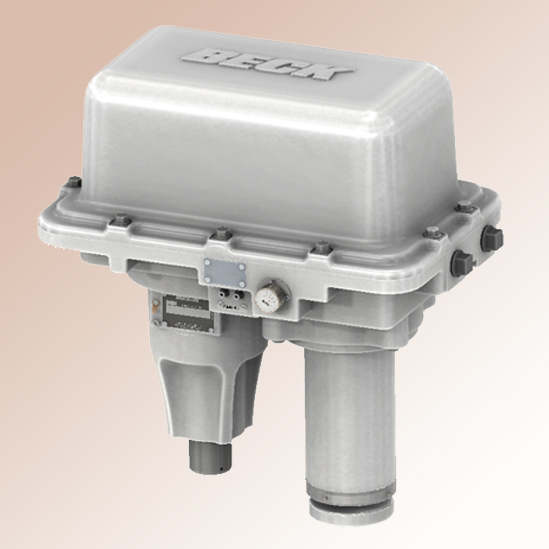

Group 29 Linear Valve Actuators - Model 29-250

Model 29-250

Available Thrust and Timing combination for the model 29-250:

Thrust n (lbs) Timing seconds/mm (seconds/inch)* Maximum Stroke mm (inch)
7562 (1700) 0.47 (12) 51 (2)
9341 (2100) 0.58 (14.8) 51 (2)
12010 (2700) 0.71 (18) 51 (2)

*Stroke times listed are for 50 Hz operation.

29-250 Dimensions Sheet
