Butterfly Valve Supplier

Vamein industrial butterfly valves from DN50 to DN2000, supplied in the UK

IPT Engineering is a UK butterfly valve supplier, offering the Vamein range of industrial butterfly valves for on/off and flow-control applications across a wide range of industries. Valves up to DN350 are available from stock and typically delivered in about 10 days. Larger sizes are available; please ask. Replacement Vamein DN150 EPDM seat liners are available from our own stock. Drawing on the manufacturer’s stock gives you a wide choice of options at a competitive price.

Vamein butterfly valves are quarter-turn assemblies that can be used either for isolation or as modulating devices to regulate flow.

The range includes wafer, lugged and flanged designs with resilient seating options. Standard valves are available from nominal diameters of 50mm (2") up to 1200mm (48"), and Vamein can build larger valves up to 2000mm (80") on request, while PTFE-seated valves are available in wafer configuration from 50mm (2") up to 300mm (12").

Depending on configuration, the valves are available for working pressures up to 16 bar (230 psi), with operating temperatures ranging from -40°C (-40°F) to 180°C (356°F).

The valve design provides a low pressure drop through the valve, helping to minimise the torque required for operation. Components are manufactured to close tolerances and are designed for interchangeability.

Vamein valves are designed in compliance with API 609, with manufacturing processes certified to ISO 9001:2015. Components are identified with manufacturing code numbers to provide traceability of materials and manufacture.

The valves meet the requirements of the Pressure Equipment Directive 2014/68/EU and are available for applications covered by ATEX 2014/34/EU where the appropriate configuration is specified.

Operation can be by lever, handwheel or actuator. IPT can also supply automated valve packages using suitable electric actuators, including the Beck range.

Applications include heavy industry, energy, shipbuilding, water and sewage treatment, chemical and process industries and food production.

Why buy from IPT?

One UK contact for the valve, gearbox or actuator, supplied as a complete package
Help choosing the body style, seat and pressure rating, and matching face-to-face dimensions when replacing an existing valve
Spares, including Vamein seat liners from our own stock
Engineers with long experience of valves, actuators and process plant, not just a catalogue

Request a Valve Quotation

Vamein Butterfly Valve Range

Different configurations for different applications

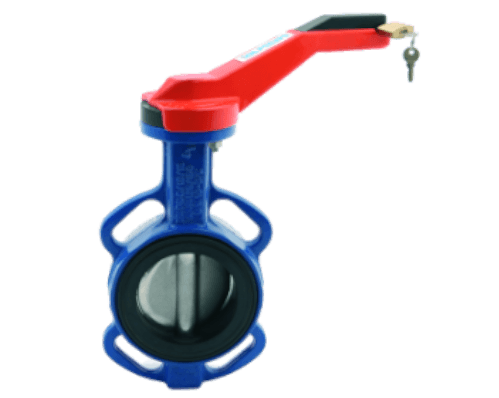

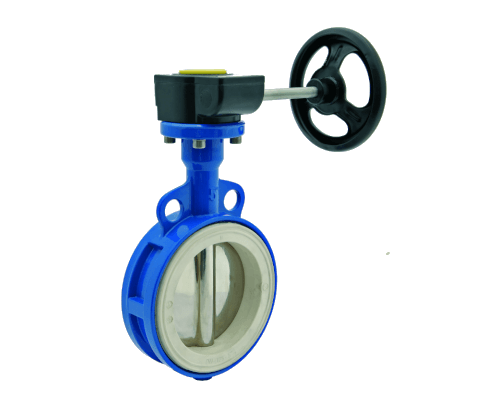

Wafer

100 Series. DN50 to DN2000. Up to DN300, one valve fits PN6, PN10, PN16, ANSI 125/150 and BS 10 Table D/E flanges. 16 bar to DN300, 10 bar above.

Wafer Light

160 Series. DN50 to DN300, 10 bar. A lighter, economical valve for irrigation, air conditioning and swimming pool installations.

Flanged

200 Series. DN100 to DN2000. Integral flange drilling for fast, accurate alignment. 16 bar to DN300, 10 bar above, -45 to +200°C.

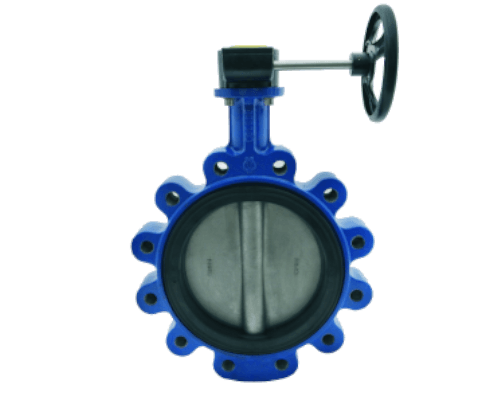

Lug

500 Series. DN50 to DN600. Threaded lugs hold the valve to one flange, so pipework downstream can be removed for repairs.

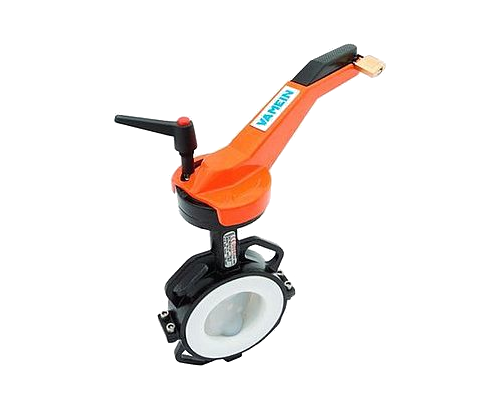

Galactic

DN50 to DN300, wafer or lug. PTFE liner and PFA-encapsulated disc for corrosive and aggressive fluids, vacuum to 16 bar, -40 to +200°C.

Vamein Valves in Production

From small wafer valves to DN800 and beyond

Vamein valves are made in Spain and supplied bare shaft or fitted with a lever, gearbox, chain wheel, or electric or pneumatic actuator.

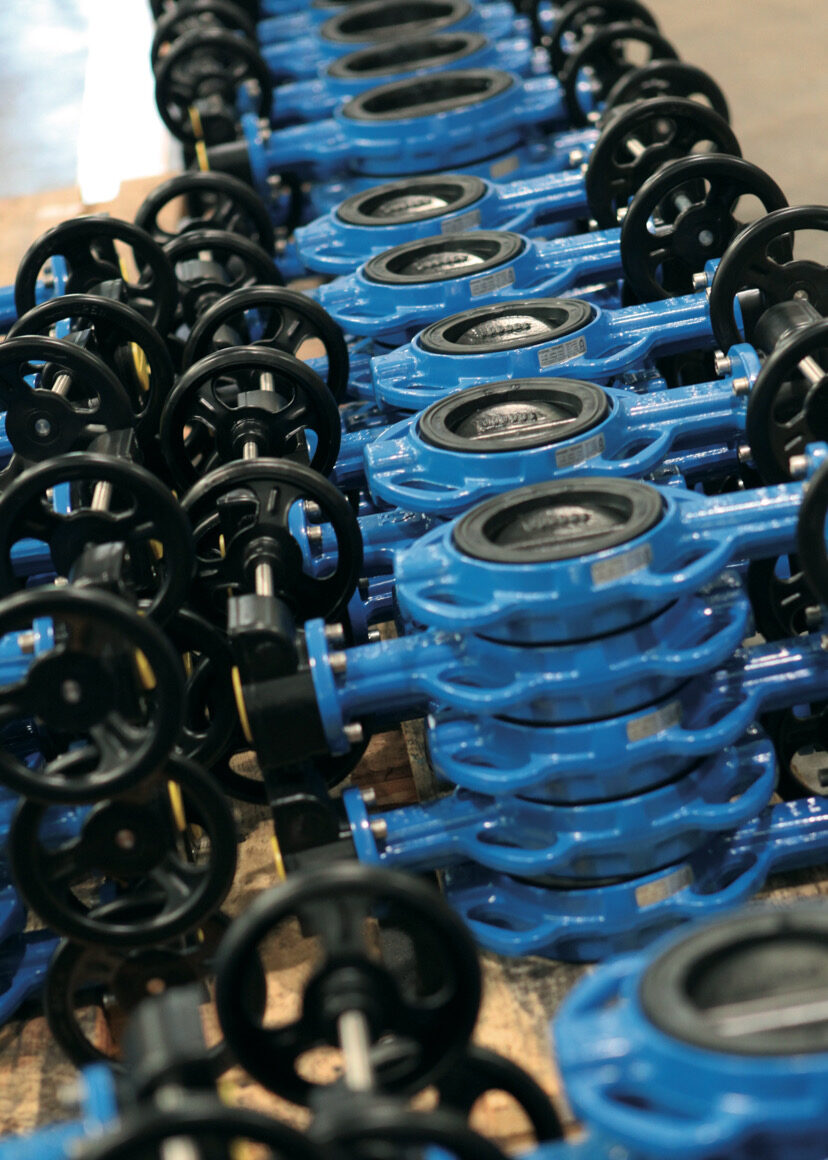

Row of Vamein wafer butterfly valves with handwheel gearboxes — Wafer valves with handwheel gearboxes, ready for dispatch

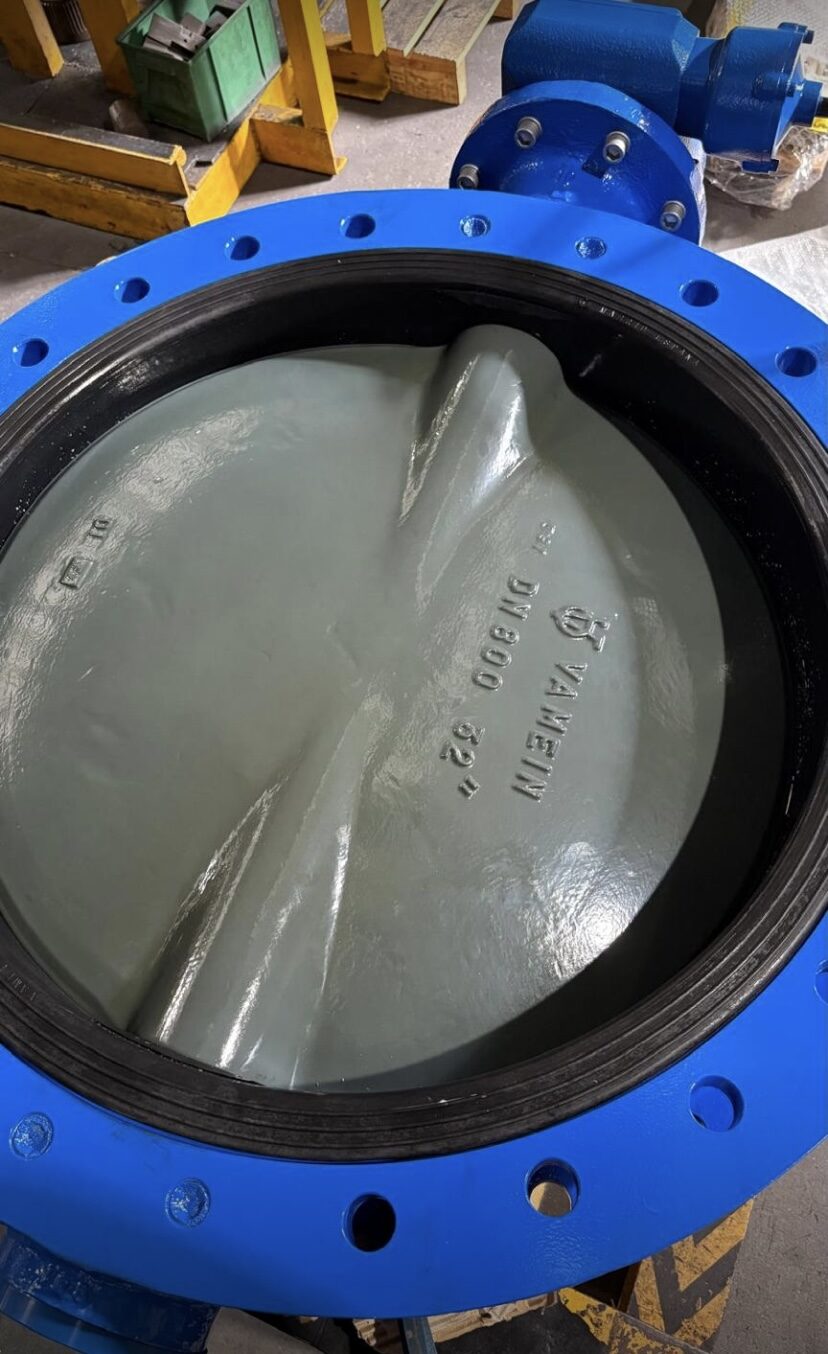

Vamein DN800 double flanged butterfly valve with epoxy coated disc — A DN800 (32”) double-flanged valve with coated ductile iron disc and gearbox

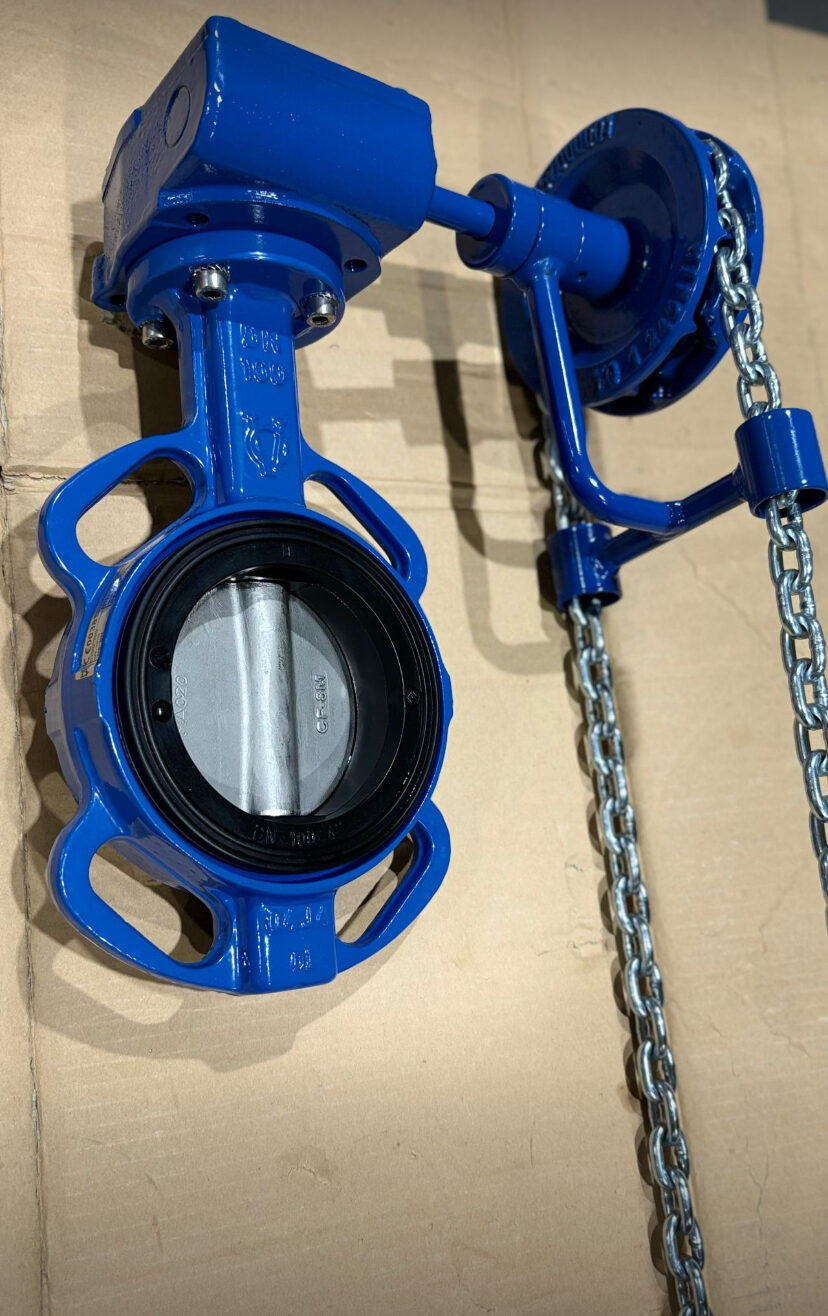

Vamein wafer butterfly valve with stainless disc and chain wheel gearbox — Wafer valve with CF8M stainless steel disc and chain-wheel gearbox, for valves mounted out of reach

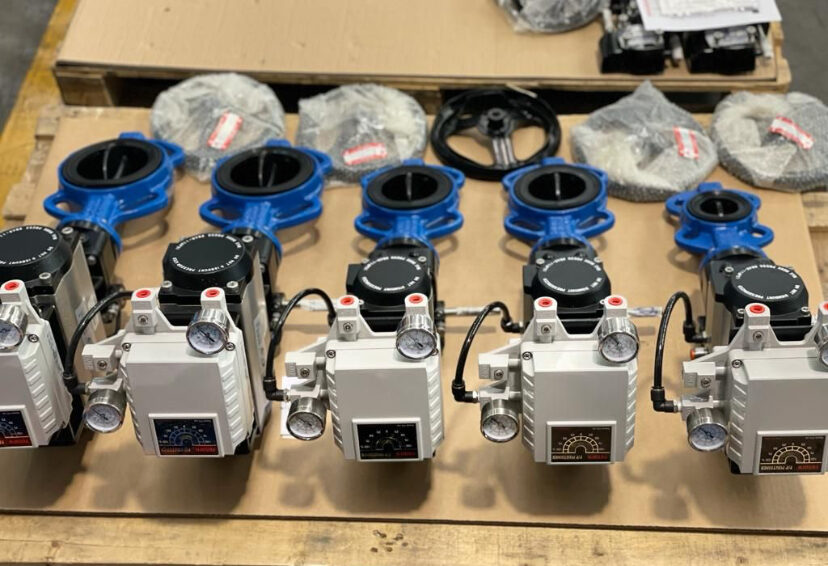

Vamein wafer butterfly valves with pneumatic actuators and positioners — Wafer valves with pneumatic actuators and positioners for modulating control

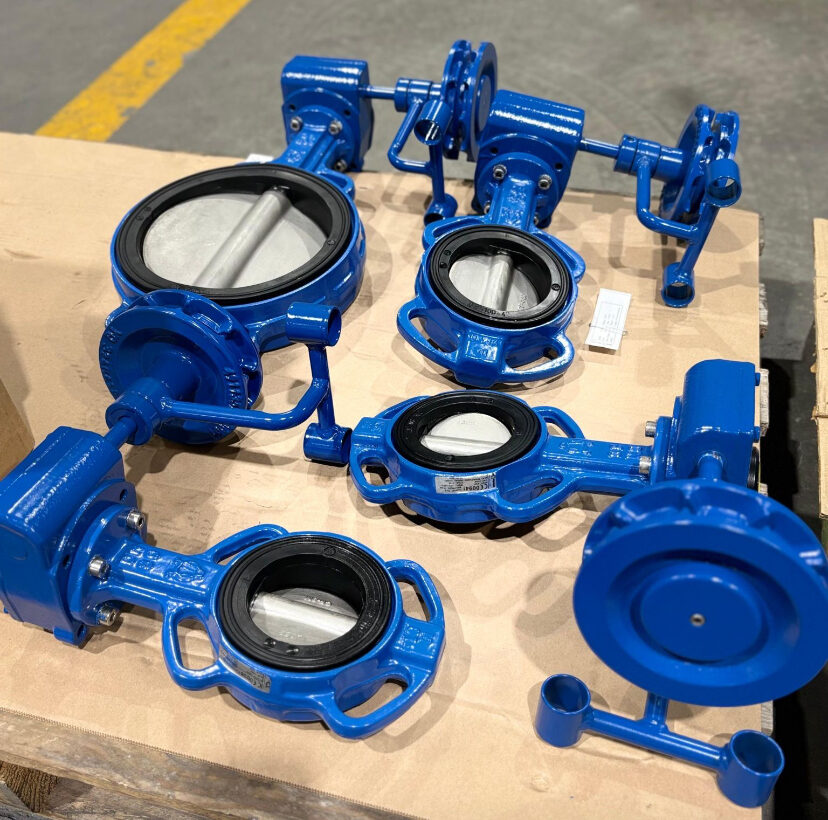

Vamein wafer butterfly valves with gearbox operators — Wafer valves with gearbox operators in a range of sizes

Cycle test: a pneumatically actuated wafer valve run through 1,000 full open and close cycles

Choosing a Butterfly Valve

Body style, size, pressure and seat

Most butterfly valve problems come from the wrong seat material or the wrong body style for the job. The tables below show how the Vamein range is matched to the duty. New to butterfly valves? Read our butterfly valve guide, or convert DN to inches with the size chart.

Valve	Sizes	Pressure	Temperature	Best for
Wafer (100 Series)	DN50–DN2000	16 bar to DN300; 10 bar above	-40 to +180°C	General isolation and control between flanges; one valve fits several flange standards up to DN300
Wafer Light (160 Series)	DN50–DN300	10 bar	-40 to +180°C	Light-duty water: irrigation, air conditioning, swimming pools
Flanged (200 Series)	DN100–DN2000	16 bar to DN300; 10 bar above	-45 to +200°C	Large lines, and where integral flange drilling makes alignment easier
Lug (500 Series)	DN50–DN600	16 bar to DN300; 10 bar above	-45 to +200°C	Where pipework downstream must come off for maintenance, or valves sit next to other fittings
Galactic (PTFE)	DN50–DN300, wafer or lug	Vacuum to 16 bar	-40 to +200°C	Acids, chlorine, solvents, slurries and other corrosive or high-purity duties

Seat Liner Materials

Only the disc and the liner touch the fluid, so the liner is chosen for the medium and temperature. Running close to a liner’s temperature limit shortens its life.

Liner	Typical use	Temperature (continuous / intermittent)
EPDM	Water, air, many dilute chemicals	-15 to +100°C / +110°C
High-temperature EPDM	Hot water and similar duties	-15 to +120°C / +130°C
NBR (nitrile)	Oils, fuels and gas	-15 to +100°C / +115°C
Hypalon (CSM)	Oxidising chemicals	-15 to +105°C / +115°C
Viton (FKM)	Hydrocarbons, solvents and higher temperatures	-20 to +180°C / +200°C
Silicone	Very low or high temperatures	-40 to +180°C / +200°C
PTFE (Galactic)	Corrosive and aggressive fluids	-40 to +200°C, depending on pressure

Bodies are available in ductile iron (Rilsan or epoxy coated), cast steel, aluminium bronze, bronze and 304 or 316 stainless steel, with discs in matching materials. Not sure what you need? Tell us the medium, pressure and temperature in the quotation form and we will check the selection with Vamein.

Benefits of Vamein Butterfly Valves

What sets Vamein apart from other butterfly valves

Quality management system to ISO 9001:2015
No gaskets needed for installation between flanges
Maintenance free
Liners easy to replace
Disc-to-shaft connection with no pins, screws or keys, and narrow machining tolerances, so all parts of the valve are interchangeable
Extremely low operating torque
Can be used as a control (regulating) valve as well as for isolation
Self-cleaning
Cavity free
Centring holes for correct alignment and fast, easy installation in the pipeline
Allows insulation on heat-resistant installations
Full material traceability: each body, disc and liner is marked with its code number, and the heat number lets Vamein’s quality assurance department confirm the chemical composition and mechanical properties at any time
Descriptive label showing the manufacturer, valve figure, maximum working pressure, maximum working temperature, flange standard and country of origin
Individual heat-shrink polyethylene packing up to DN300 (12”)
Available marked to the Pressure Equipment Directive 2014/68/EU and ATEX Directive 2014/34/EU, and with certificates for drinking water for human consumption

Application information for each valve series is available on Vamein’s website, or ask us and we will help you choose.

Quick Quote: Common Sizes

DN50 to DN350 from stock, delivered in about 10 days

Pick a size and body style to start your quotation. We will fill in the form below for you; add the quantity, the medium and your contact details and send it. Sizes up to DN350 are available from stock and typically delivered in about 10 days; larger sizes, up to DN2000, are available on request. Because we draw on the manufacturer’s stock rather than holding a limited range on the shelf, you get a much wider choice of body, disc, seat and operator combinations, and we keep our prices competitive.

Size	Inches	Delivery
DN50	2"	From stock, about 10 days
DN65	2½"	From stock, about 10 days
DN80	3"	From stock, about 10 days
DN100	4"	From stock, about 10 days
DN125	5"	From stock, about 10 days
DN150	6"	From stock, about 10 days
DN200	8"	From stock, about 10 days
DN250	10"	From stock, about 10 days
DN300	12"	From stock, about 10 days
DN350	14"	From stock, about 10 days

Not sure of the size? See the butterfly valve size chart, or send a photo of the existing valve and its label.

Valve Applications

Industrial flow control across multiple sectors

Vamein butterfly valves can be specified for a broad range of industrial flow-control and isolation duties.

Water Treatment & Distribution
Water treatment plants, distribution systems and associated industrial services.
Chemical & Process Industry
Chemical plants, process systems and applications requiring suitable resilient or PTFE seating.
Energy & Power
Power plants and industrial energy systems.
Petrochemical & Gas
Petrochemical plants, gas distribution and general industrial services.
Paper, Pulp & Heavy Industry
Flow-control duties throughout paper, pulp, steel and other heavy industrial installations.
Shipbuilding & Marine
Valve applications within shipbuilding and associated marine systems.

Manual or Automated Valve Packages

Valve and actuator solutions from IPT Engineering

Vamein butterfly valves can be supplied for manual operation or configured with suitable electric actuators for automated valve control.

Where an automated solution is required, IPT can help with valve and actuator selection based on the application, torque requirement and control duty.

Our Beck electric actuator range provides precise positioning and continuous modulation for applications where more than simple open/close control is required. For butterfly valves, see the Beck Group 11 quarter-turn actuators, such as the direct-coupled 11-160, 11-260 and 11-360.

View Electric Actuators

Butterfly Valve Questions

Who supplies Vamein butterfly valves in the UK?

IPT Engineering supplies Vamein butterfly valves in the UK, with lever, gearbox or actuator operation. Valves up to DN350 are typically delivered in about 10 days. For a quotation, tell us the size, body style, seat material and working pressure.

What is the difference between a wafer and a lug butterfly valve?

A wafer valve is clamped between two pipe flanges by long bolts. A lug valve has threaded lugs, so it is bolted to each flange separately and can stay in place when the pipework on one side is removed.

Can a lug butterfly valve be used at the end of a line?

Only occasionally, and not with a cast iron body. Vamein limits end-of-line pressure to 5.6 bar for DN50 to DN150 and 3.5 bar for DN200 to DN600, and the line should be reconnected before normal service.

Which seat material do I need?

It depends on the medium and temperature. EPDM suits water and air up to about 100°C, NBR suits oils and fuels, Viton suits hydrocarbons and higher temperatures up to 180°C, and PTFE (Galactic) suits corrosive chemicals. Tell us the duty and we will confirm the choice.

Do Vamein butterfly valves need flange gaskets?

No. The liner seals directly against the pipe flanges, so no additional gaskets are needed.

Can I fit an actuator to a manual valve later?

Yes. The top flange is to ISO 5211, so a standard electric or pneumatic actuator can be fitted on site in place of the lever or gearbox.

What pressures and sizes are available?

Standard valves run from DN50 (2”) to DN1200 (48”), and Vamein can build up to DN2000 (80”) on request. They are rated 16 bar up to DN300 and 10 bar above. Higher pressures and other drilling standards are available on request.

How quickly can you deliver?

Vamein butterfly valves up to DN350 are available from stock and typically delivered in about 10 days. Larger sizes are available; please ask and we will confirm the lead time with your quotation.

Are ATEX valves available?

Yes. Vamein valves can be supplied for use in potentially explosive atmospheres. Tell us the zone when you ask for a quotation.

Need a Replacement Valve or Part?

IPT can also help with difficult-to-source industrial components

If you are trying to replace an existing butterfly valve, actuator or other industrial component, send us the part number, manufacturer, photograph or equipment details.

We can investigate obsolete, discontinued and hard-to-find components through our international supplier network.

Non-standard sizes are not a problem. See our case study on replacement hot air butterfly valves for a UK steel plant, designed with AMMTech to fit existing non-standard face-to-face dimensions on short lead times.
