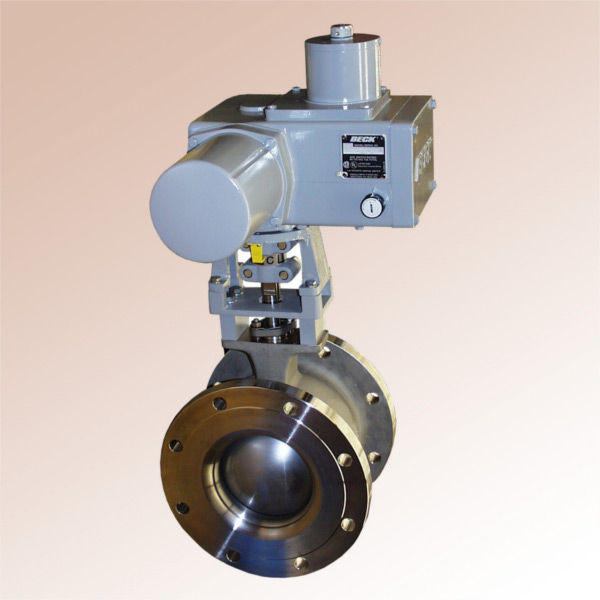

Group 11 Quarter-Turn Rotary Actuators Direct Coupled - Model 11-160
Available Torque and Timing combinations for the model 11-160:
| Torque nm (lb-ft) | Stroke Time* (seconds/90°) |
|---|---|
| 20 (15) | 12 |
| 27 (20) | 22 |
| 54 (40) | 22 |
| 54 (40) | 43 |
| 81 (60) | 65 |
| 108 (80) | 26 |
| 108 (80) | 43 |
| 108 (80) | 97 |
*Stroke times listed are for 50 Hz operation.
11-160 Direct Coupled Dimension Sheet
We are available to help with this product selection, including on-site application reviews, or hands-on demonstrations. If you have any questions about this product please contact us.
