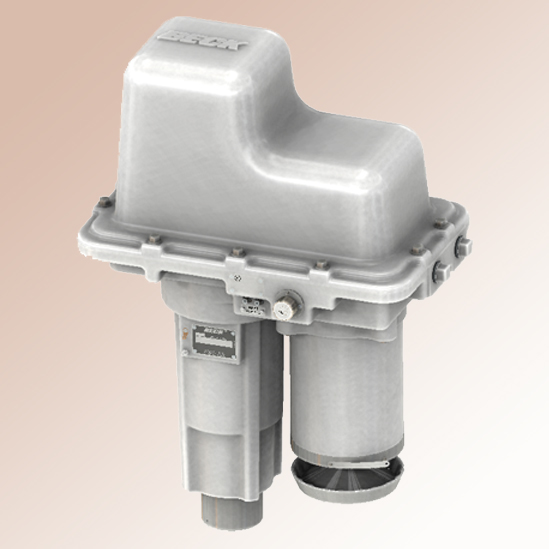

Group 29 Linear Valve Actuators - Model 29-600

Model 29-600

Available Thrust and Timing combination for the model 29-600:

Thrust n (lbs) Timing seconds/mm (seconds/inch)* Maximum Stroke mm (inch)
9341 (2100) 0.44 (11.2) 101.6 (4)
11565 (2600) 0.54 (13.9) 101.6 (4)
16013 (3200) 0.55 (16.8) 101.6 (4)
18237 (4100) 0.44 (11.2) 101.6 (4)
22241 (5000) 0.54 (13.9) 101.6 (4)
27134 (6100) 0.55 (16.8) 101.6 (4)

*Stroke times listed are for 50 Hz operation.

29-600 Dimensions Sheet

We are available to help with this product selection, including on-site application reviews, or hands-on demonstrations. If you have any questions about this product please contact us.
